1. It is easy, quick to change the cutter, no need to clamp, easy operate, perfect chamfering, easy adjust, and economic, suitable for batch parts of machanism or mould.

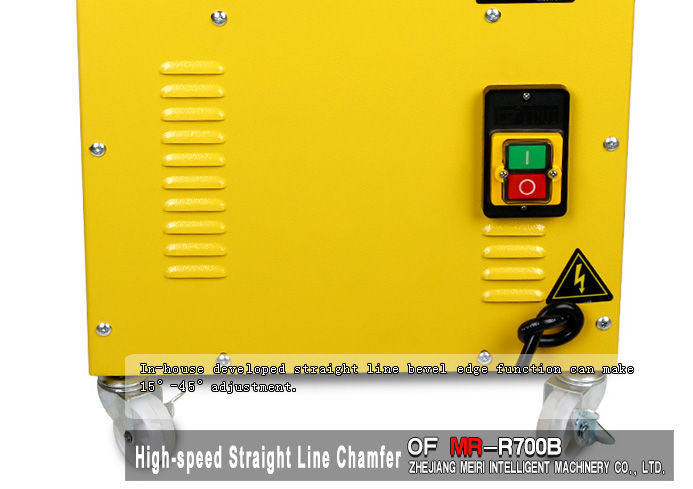

2. In-house developed straight line bevel edge function can make 15 °– 45° adjustment.
3. Need no attire clamping, simplicity of operation, neat bevel edge, easy adjustment greatly enhance operation efficiency.
4. This bevel machine is suitable for batch machine parts production, mold bevel edge. Using high-speed bevel machine is the current trend of the development of mechanical industry.

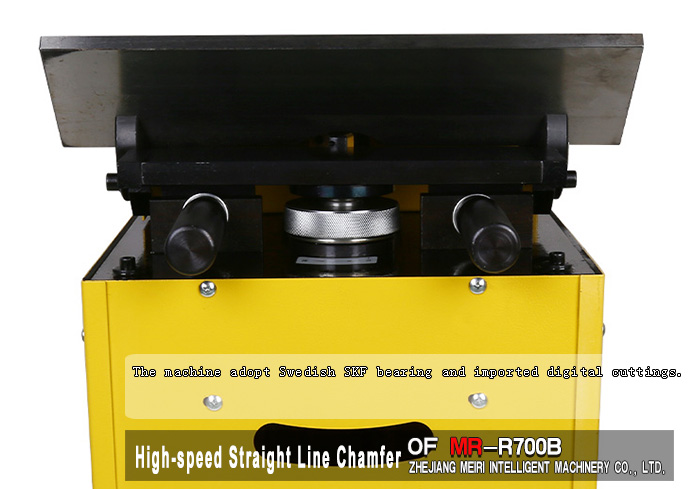

5.The machine adopted Swedish SKF bearing and imported digital cuttings.

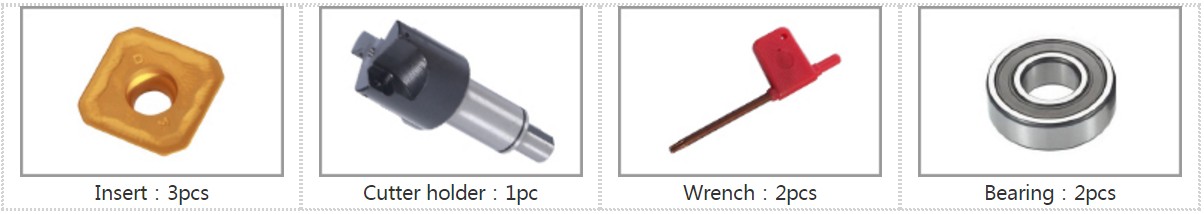

Standard Equipment
SPECIFICATION
Chamfering angle: 15°- 45°
Chamfering range: 0-3mm
Speed: 8500RPM
Power: 380V/50HZ/3 phase/750W
Package Dimension: 46×41×56cm
N.G./G.W: 44kg/50kg
Announcements
The machine shall be regularly checked and maintained in accordance with the following items:
1. At the end of each working, cleaning the iron that remains on the machine, keep the machine clean.
2. Observe the tightness of the belt, adjust if it is necessary.
3. Regular checking the various parts of the fastening screws to avoid loosing.
4. Inserts wear or damage, adjust the inserts to use other cutting edge angle. If the 4 sides of inserts have been worn, please replace.

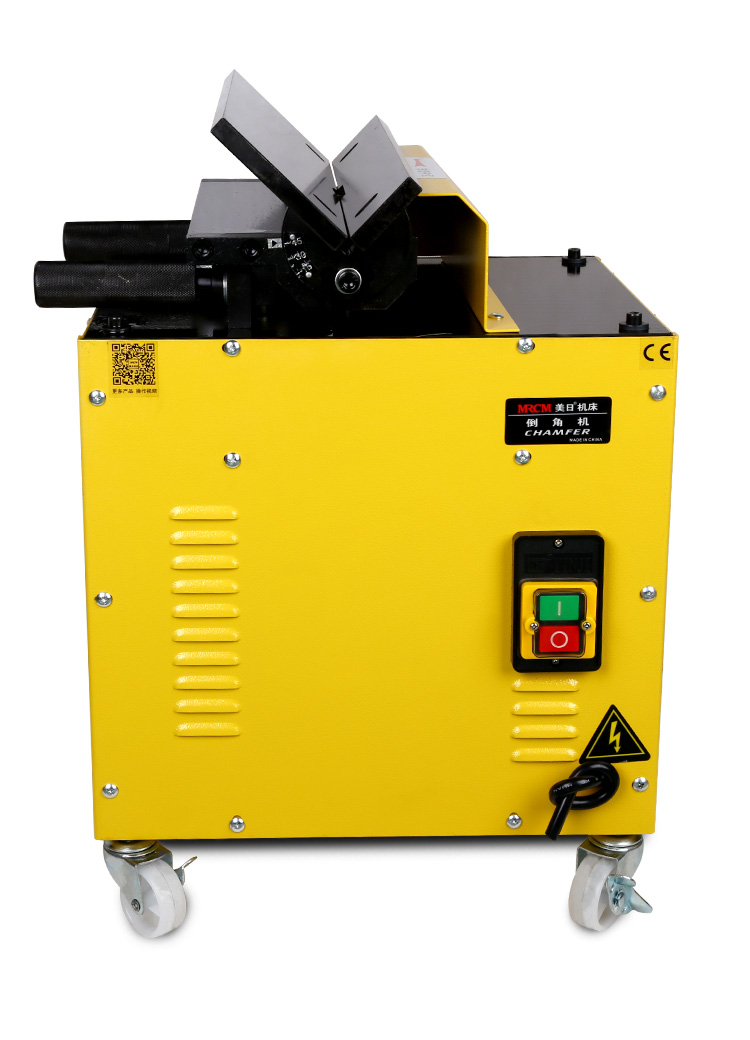

Product Structure

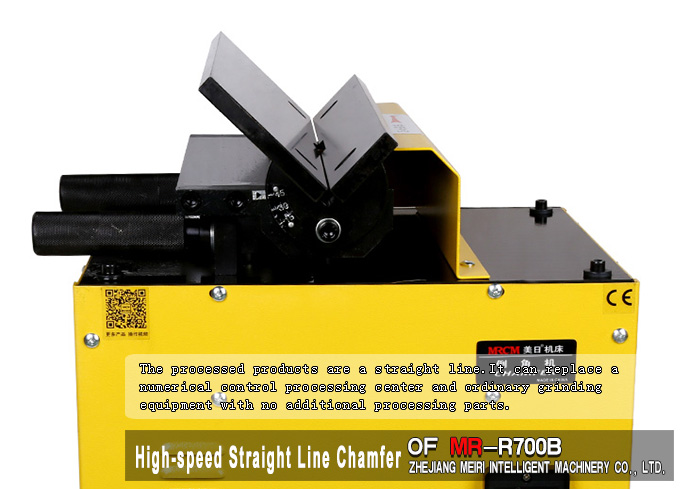

Grinding Effect
Using three-phase high-speed motor,the rotation speed of cutting shaft is very high,and the roughness of machined surface is perfect.
Using high strength,high wear-resistant,high-quality cutting blades,with long service life, reliable,stable and high production efficiency.
