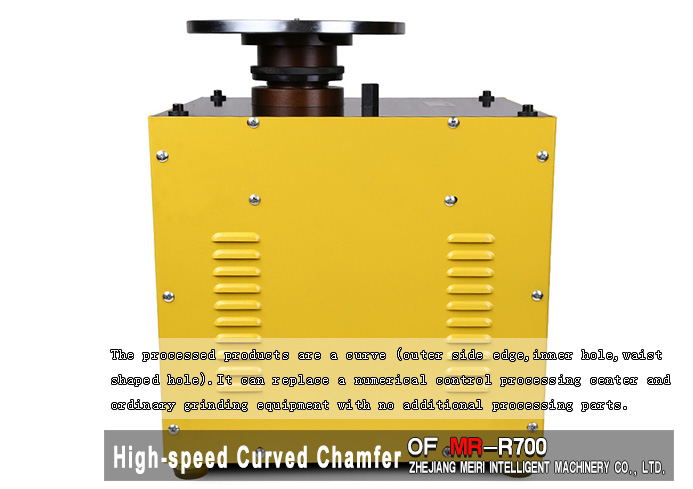

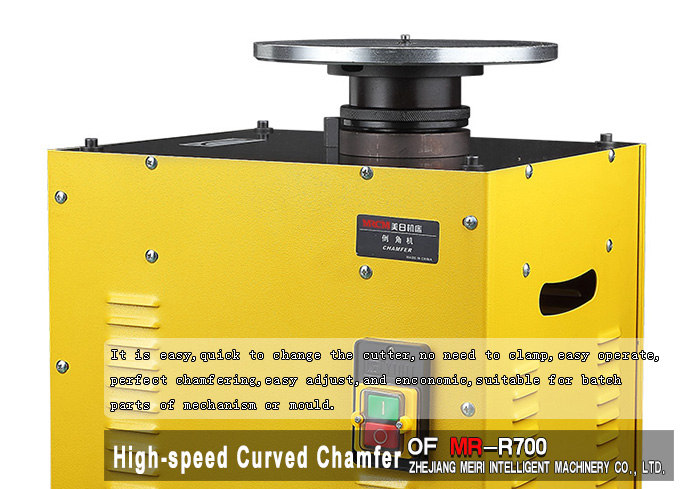

The processed products are acurve (outer side edge,inner hole,waist shaped hole). It can replace a numerical control processing center and ordinary grinding equipment with no additional processing parts. It is easy ,quick to change the cutter, no need to clamp easy operate,perfect chamfering,easy adjust, and enconomic, suitable for batch parts of mechanism or mould.

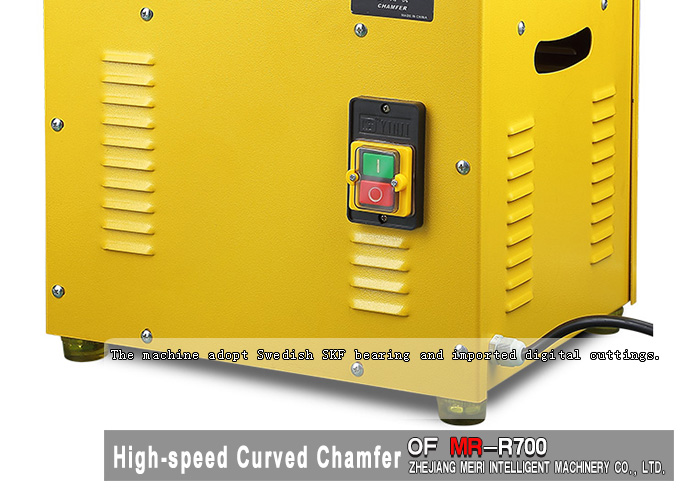

The machine adopted Swedish SKF bearing and imported digital blades.(blade model number:070204)
Standard Equipment
SPECIFICATION
Chamfering angle：45°
Chamfering range：0~2.5mm
Speed：8500rpm
Power：750W 380V 3/4HP
Dimension：41×35×46cm
Package Dimension：44×38×48cm
N.G./G.W：37.5kg/42kg
The machine shall be regularly checked and maintained in accordance with the following items:
1. At the end of each working, cleaning the iron that remains on the machine, keep the machine clean.
2. Observe the tightness of the belt, adjust if it is necessary.
3. Regular checking the various parts of the fastening screws to avoid loosing.
4. Inserts wear or damage, adjust the inserts to use other cutting edge angle. If the 4 sides of inserts have been worn, please replace.
Product Structure
Grinding Effect

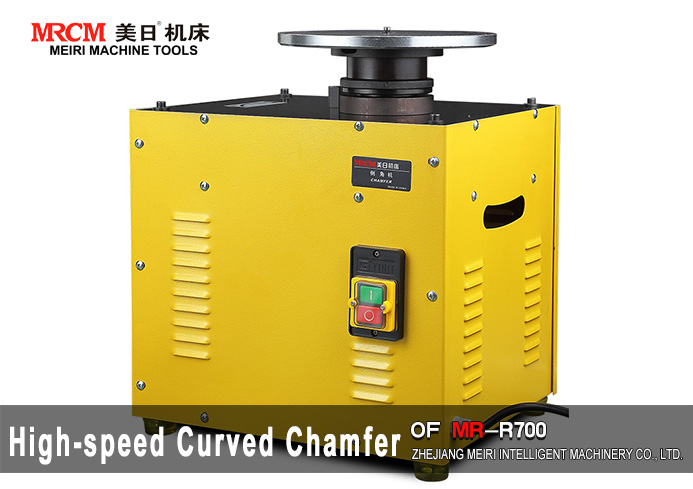

MR-R700 high-speed curved chamfer,no need to clamp,easy operation,perfect chamfering,easy adjustment,and it is also economic,suitable for batch parts of mechanism or mould.
It can be widely used in mold manufacturing,mental machinery,machine tool manufacturing,hydraulic spare parts,valves and textile machinery's chamfering.
High-speed chamfering machine is the current trend of the development of mechanical industry. It overcomes the processing shortcomings of existing machinery and power tools. With convenient, fast and accurate advantages,it is the best choice for cutting and chamfering metal parts.
