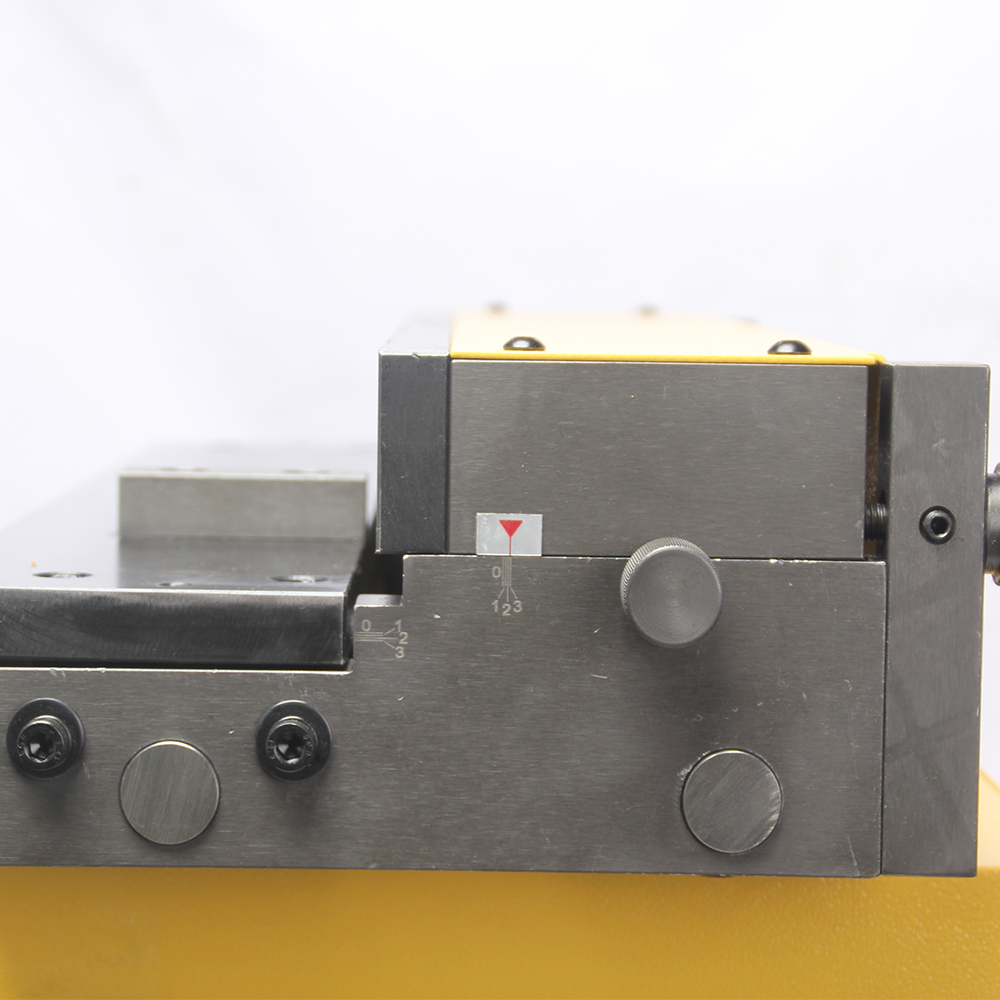

In-house developed straight line bevel edge function can make R adjustment.
Need no attire clamping, simplicity of operation, neat bevel edge, easy adjustment greatly enhance operation efficiency.
This bevel machine is suitable for batch machine parts production, mold bevel edge.
Using high-speed bevel machine is the current trend of the development of mechanical industry.
The machine adopt Swedish SKF bearing and imported digital cuttings.
| Model | MR-R700E |
| Straight line angle | 45° |
| Power | 3/4HP(550W), 380V |
| Speed | 8500rpm |
| Chamfering height | R1,R2,R3,R4,R5 |
| Dimensions | 82×33×47cm |
| Weight | 47kg |
| Standard Equipment | Inserts R2,R3 |
