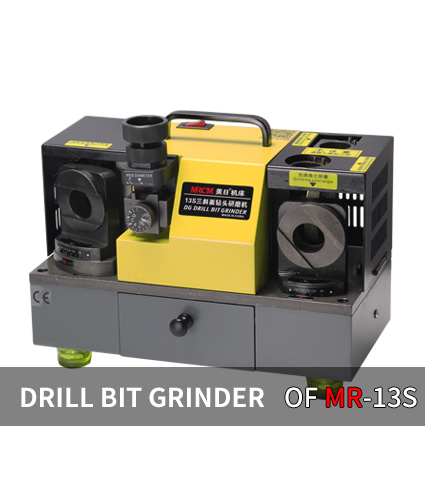

MR-13S DRILL BIT RE-SHARPENER

Description:

Portable drill grinder
it is accurate and with long service life.

PRODUCT INSTRUCTION

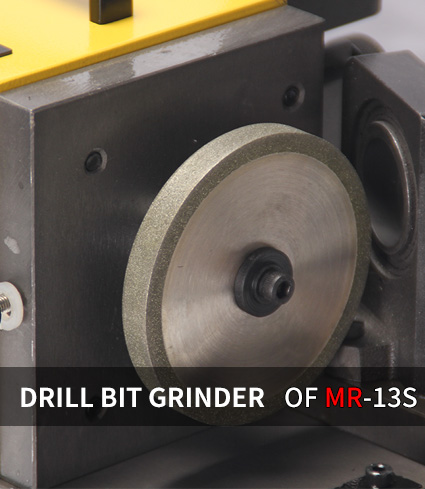

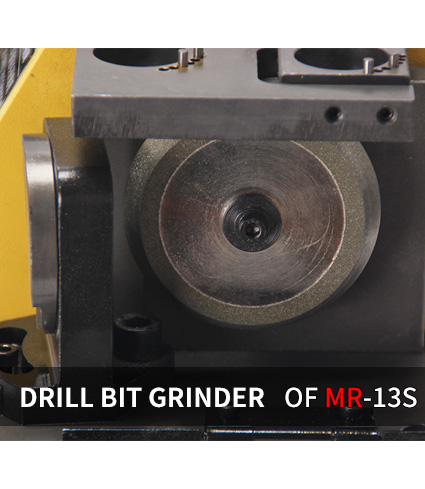

1.Portable drill grinder. With Taiwan grinding wheel, it is accurate and with long service life.

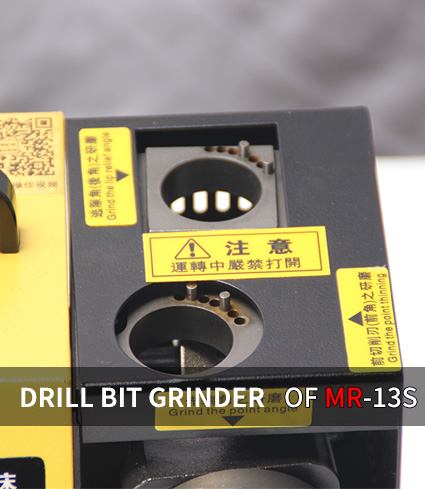

2.13S for the left and right grinding, right for grinding the drill's point angle and front cutting lip, left for grinding the drill's double back angle.

SPECIFICATION
Model：MR-13S
Grinding Range：Ф4-ф14
Point Angle：95°~135°
Power：220V
Motor：160W
Speed：4400rpm
Dimension：38*27*32
Weight：17kg
Standard Equipment：grinding wheel :CBN (for HSS) ×1
Twelve collets:ф4、ф5、ф6、ф7、ф8、ф9、ф10、ф11、ф12、ф13、ф14
collet chuck:(ф4-ф14) ×1
Option Equipment：grinding wheel :SD (for Carbide)

Standard Equipment

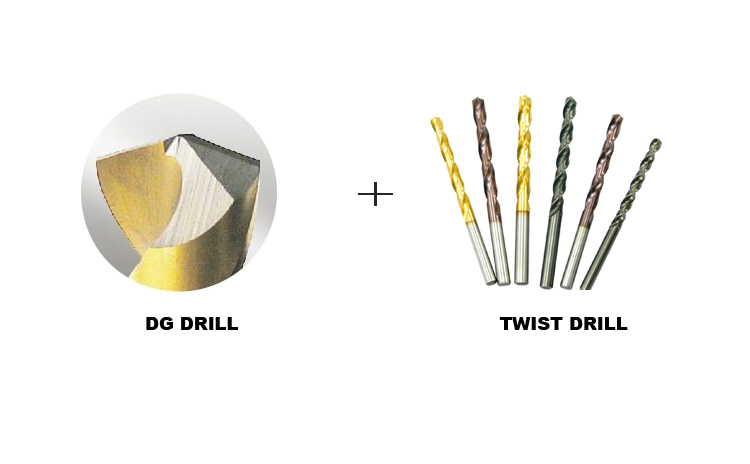

Drill grinding machine grinding effect

Product Demonstration

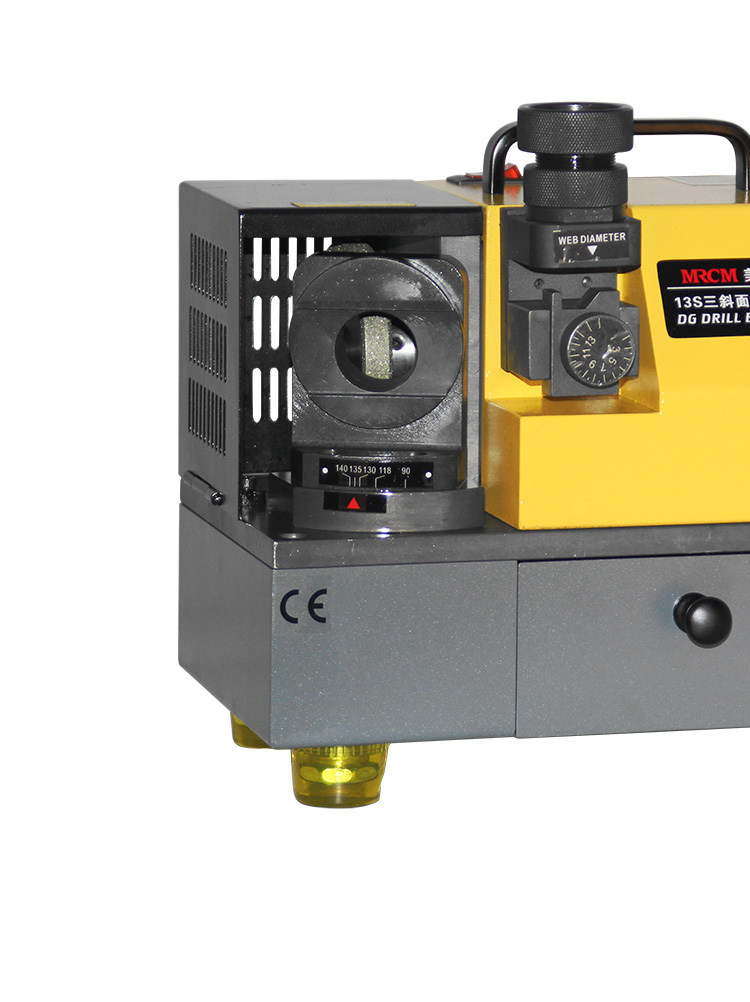

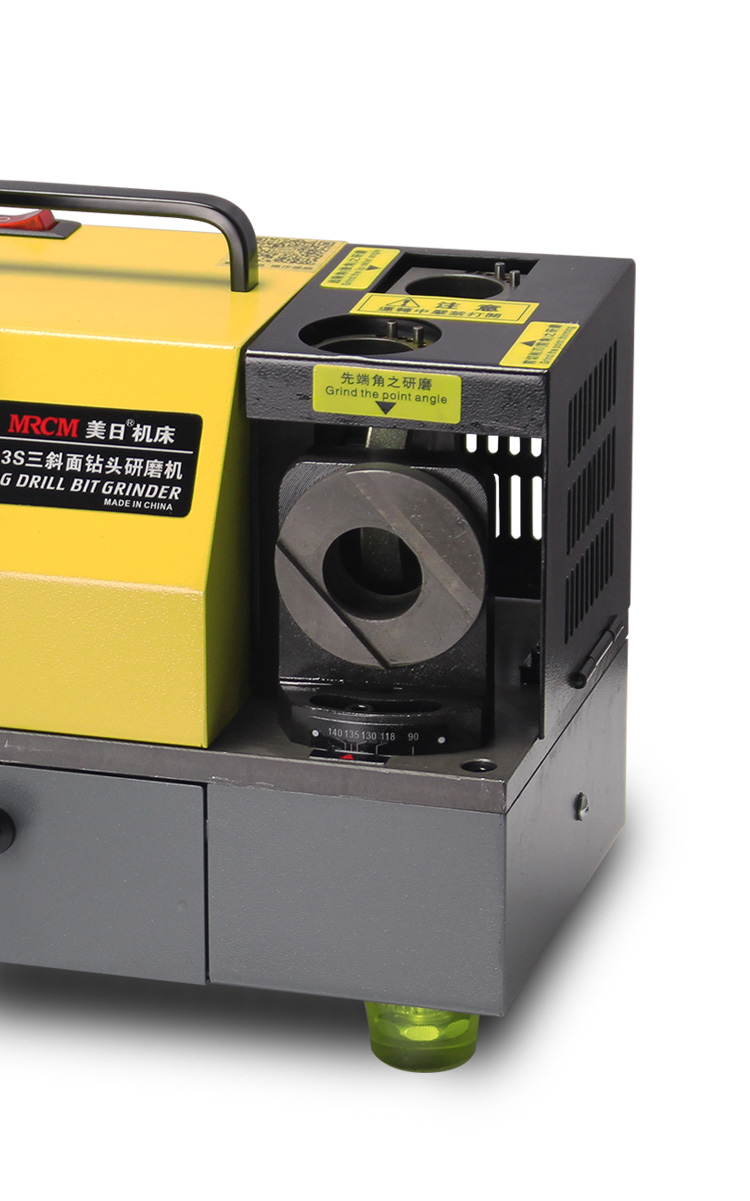

SMALL SIZE, SUITABLE FOR ANY PLACE TO DO DRILL GRINDING.

high accuracy twist drill sharpener machine

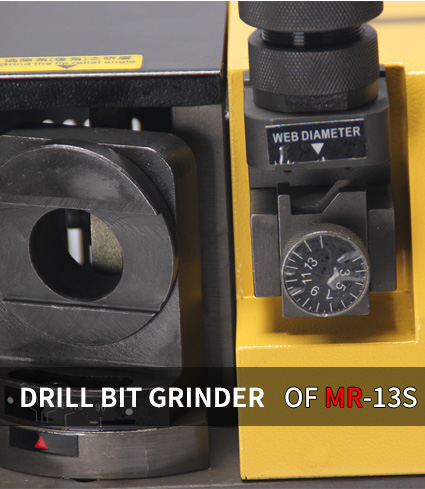

EASY TO DO THE DRILL SETTING
According the diameter of the drill to adjust the scale, the operation steps are clear.
High precision and high efficiency.

SMALL SIZE, SUITABLE FOR ANY PLACE TO DO DRILL GRINDING. DRILL GRINDER

EASY FOR DRILL GRINDING

According the parallel line of the grinding hole, insert the chuck, rotate left and right.

It can be finished at one time.
DRILL RESHARPENER
