PRODUCT INSTRUCTION
1.Grinding is accurate and rapid, easy operation with no skill to grind.
2.Economical price that greatly reduces the cost and improves the use effect.
3.With diamond grinding wheel, it can be equipped directly with an accurate angle and long service life.
4.The electrically controlled and powerful DC motor: stable frequency, strong horsepower and long service life.
5.Bearing shaft and locking unit.
6.The machine is set up with the function of adjusting a point (central point) size, which can effectively coordinate with the material of drill hole and the rotation speed. It can control the quality precision and prolong the service life of the drill bit.

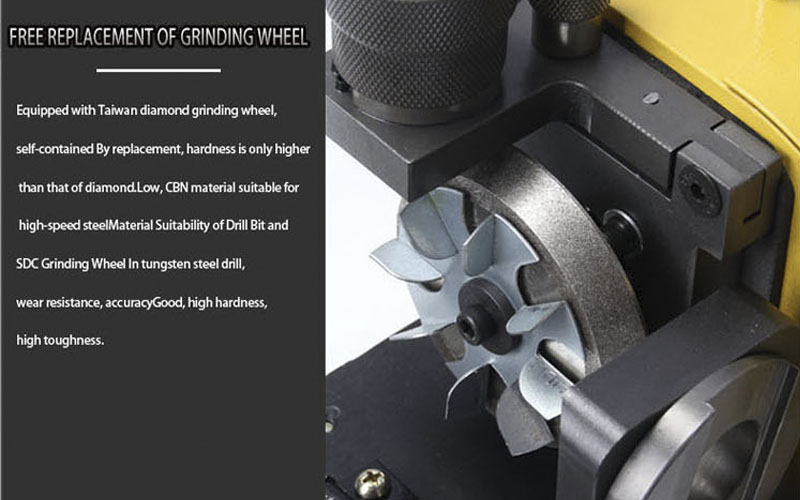

Standard with CBN grinding wheel for the HSS material, Optional SDC grinding wheel for the carbide material.



SPECIFICATION

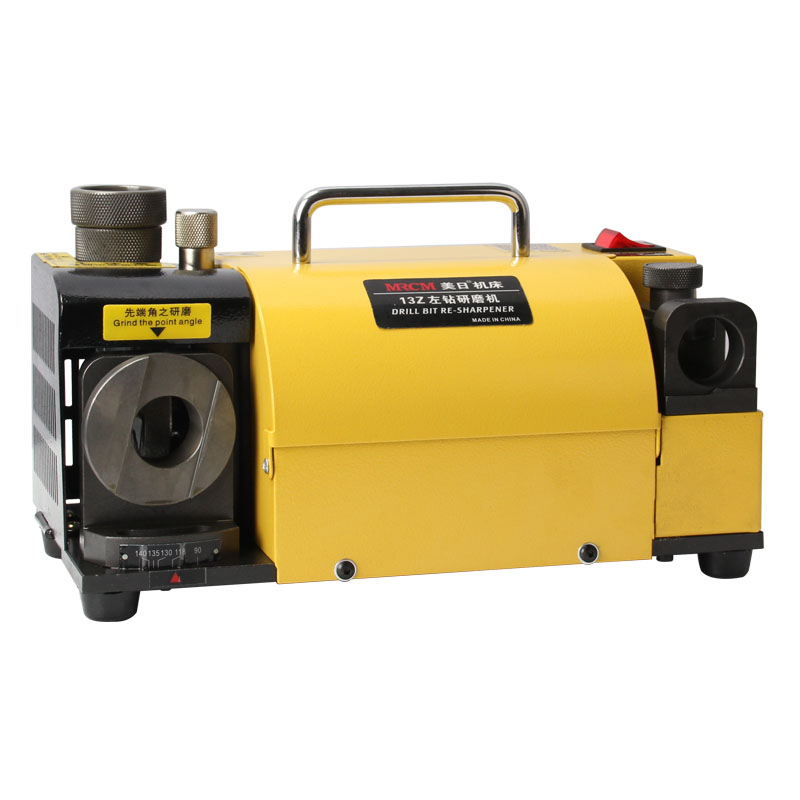

Model：MR-13Z
Grinding Range：Φ2-Φ13(Φ15)
Point Angle：100°(95°)~135°
Power：220V
Motor：120W
Speed ：4400rpm
Dimension：32*18*19cm
Weight：9kg
Standard Equipment：Grinding wheel :CBN (for HSS)×1
Eleven collets: Φ3,Φ4,Φ5,Φ6,Φ7,Φ8,Φ9,Φ10,Φ11,Φ12,Φ13
Collet chuck:(Φ2-Φ14)×1
Option Equipment：Grinding wheel :SD (for Carbide)
Collets: Φ2,Φ2.5,Φ3.5,Φ4.5,Φ5.5,Φ14,Φ15
Collet chuck:Φ15

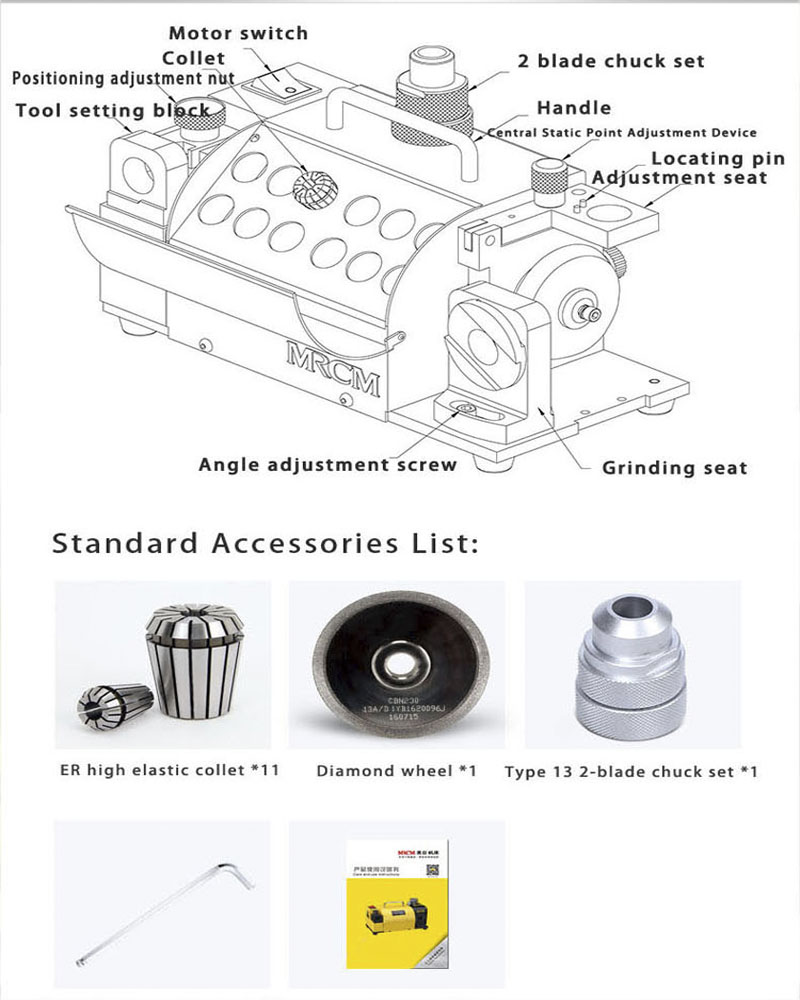

STANDARD EQUIPMENT
