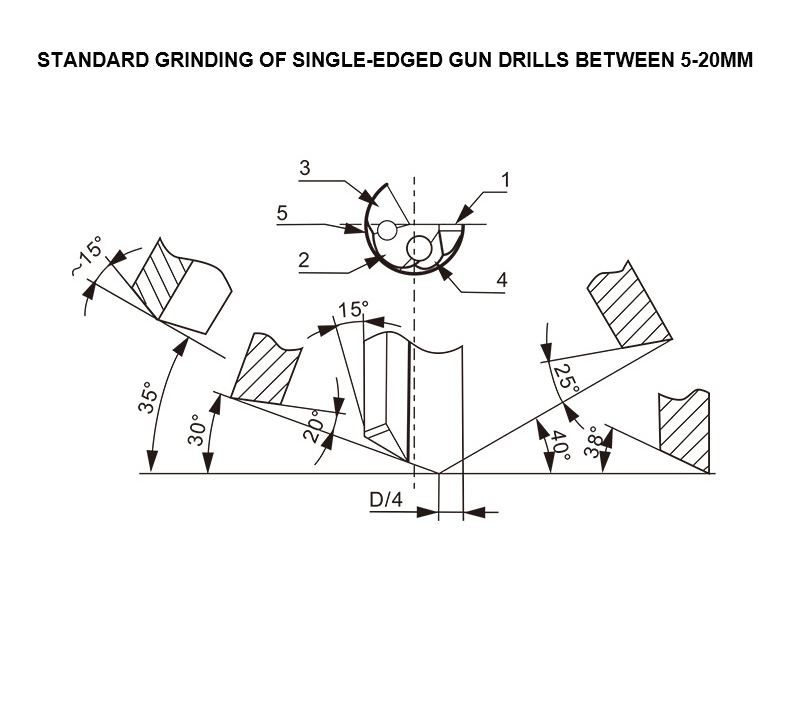

1.MR-QZ5 is able to grind many size gun drill,
2. Worktable uses high precision straight line roiling guide rails, good movement, high stability, steady bed platform, dexterous operation.
3. Adopting cast iron FC30 with high strength can maintain mechanical precision for a long time.
Grinding a variety size of gun drill and change the parts can for some lathe tools 3. Adopting cast iron FC30 with high strength can maintain mechanical precision for a long time.
The machine has been fitted with diamond grinding wheel, which is mainly suitable for grinding hard alloy materials, CBN materials and ceramic materials. If the user is to grind other materials, it is necessary to prepare and replace the suitable grinding wheel.
SPECIFICATION ：

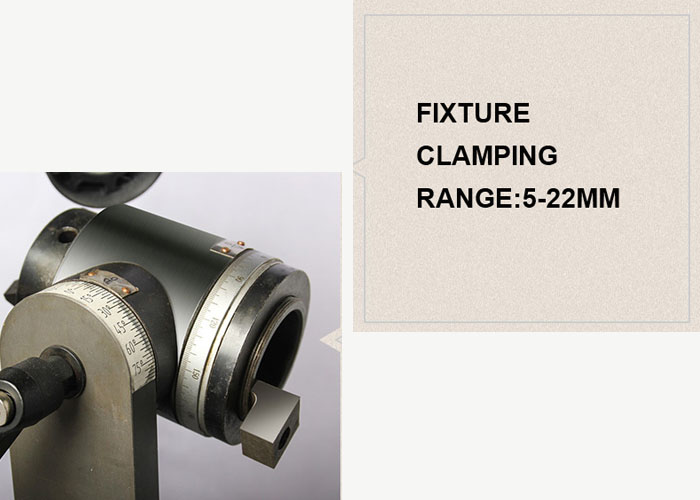

Size: 5-22mm
Speed:2800rpm
Voltage: 380v 550w
Worktable diameter:140mm
Grinding wheel:125*50*32mm
Dimension:44*34*44cm
Weight:78kg
