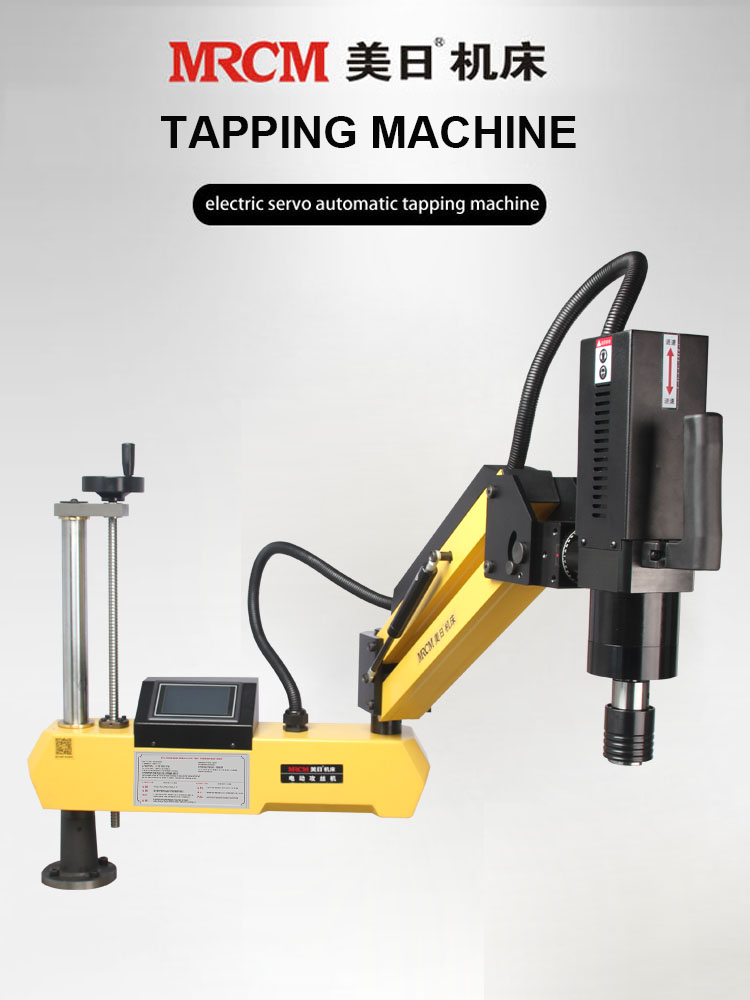

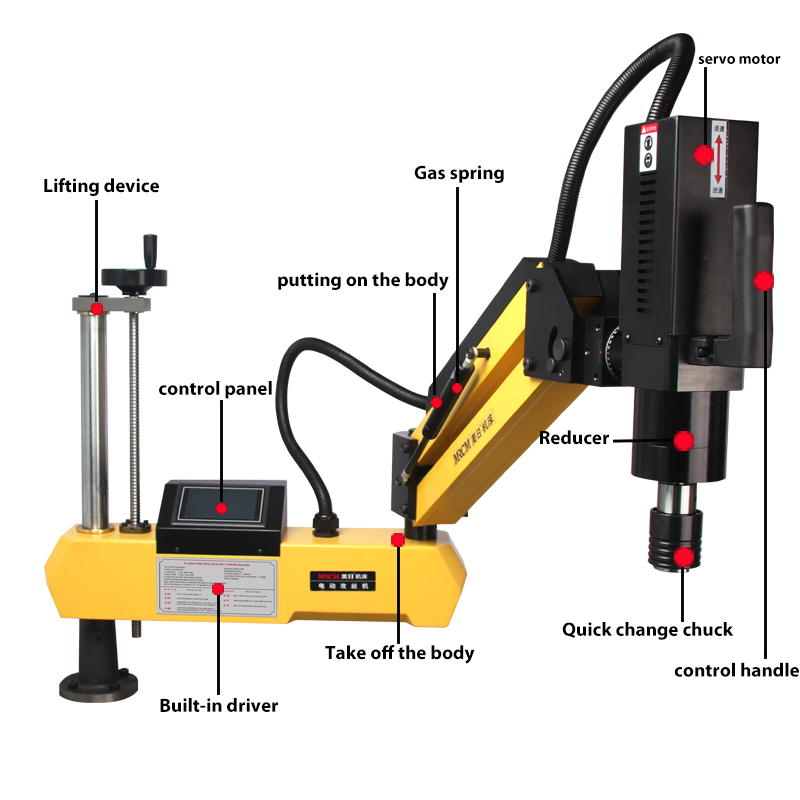

1, the machine adopts servo drive control, with intelligent torque protection, instead of the traditional lathe, drilling machine or manual tapping limitations.
2, advanced mechanical design, a variety of processes using mold castings, the overall rigidity is strong, durable, non deformation, beautiful appearance.

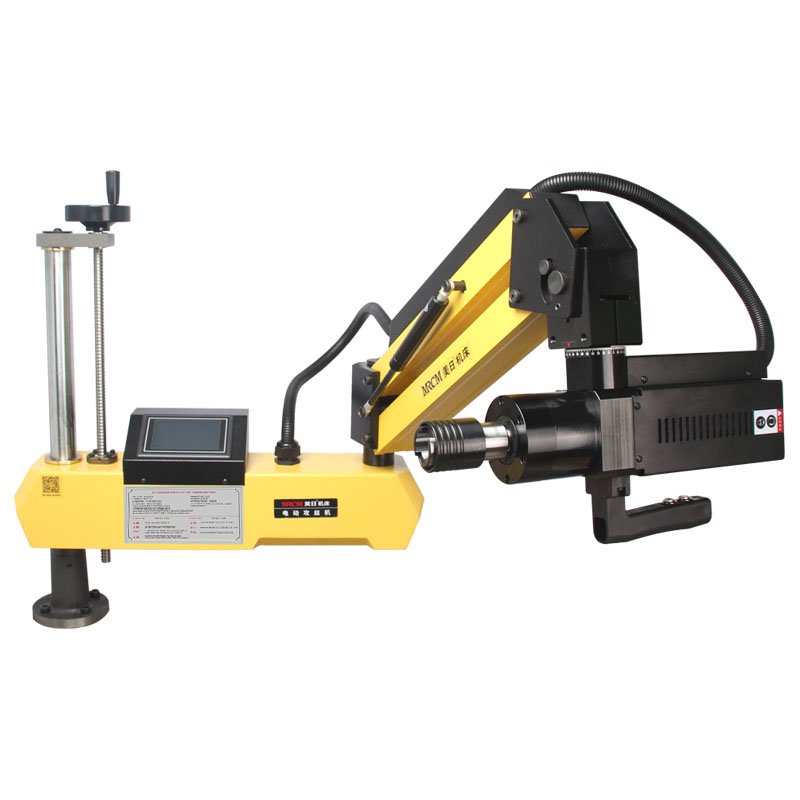

3. The high definition touch screen is simple and flexible. It can realize the vertical and horizontal work of complex and heavy workpiece, locate quickly, and process accurately.

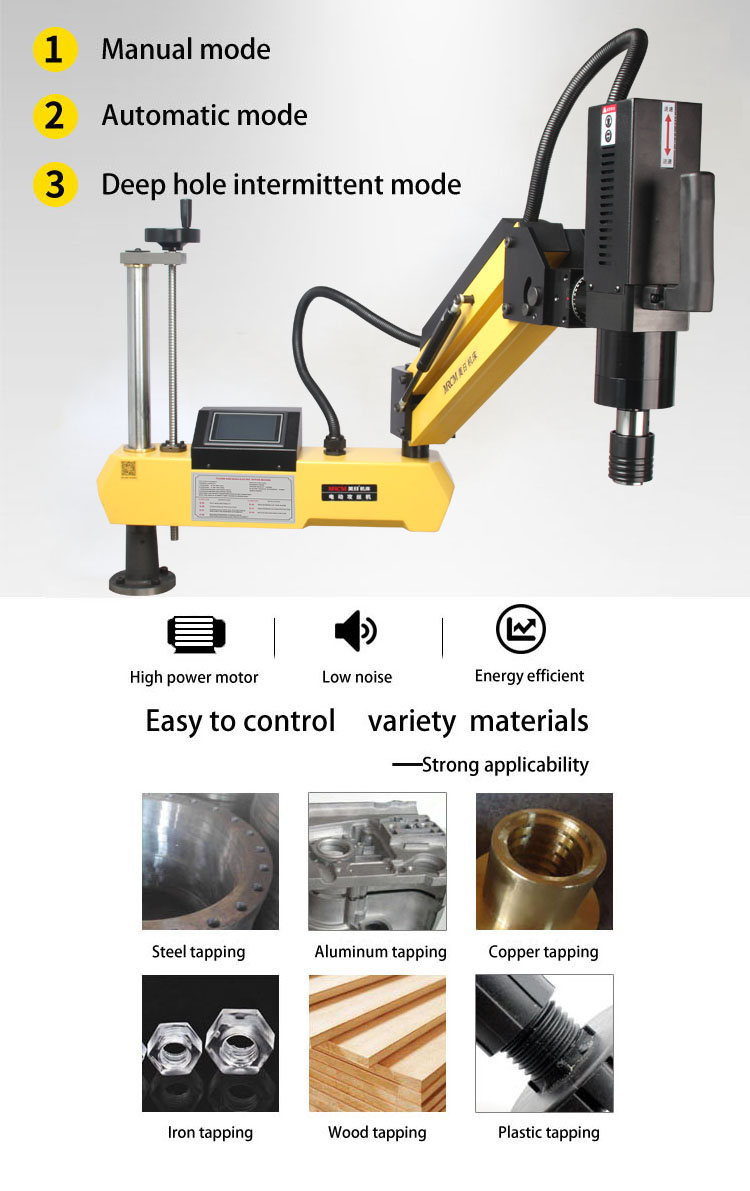

4, stepless speed change, manual, automatic, linkage three modes of work, whatever you choose.
5, automatic mode can effectively control the depth of tapping, without the operation button, automatic control by depth controller.
6, repeated positioning fast, tapping speed, high production efficiency.
PARAMETER
ITEM：MR-DS16(push-button,vertical type)
VOLTAGE：220V/50HZ
POWER：600W 0-312RPM
TAP RANGE：M3-M16
COLLET：M3,M4,M5,M6-8,M10,M12,M14,M16
ITEM：MR-DS30(push-button,vertical type)
VOLTAGE：220V/50HZ
POWER：1200W 0-150RPM
TAP RANGE：M6-M30
COLLET：M6-8,M10,M12,M14,M16,M18-20,M22,M24,M30
ITEM：MR-DS36(push-button,vertical type)
VOLTAGE：220V/50HZ
POWER：1200W 0-150RPM
TAP RANGE：M6-M36
COLLET：M6-8,M10,M12,M14,M16,M18-20,M22,M24,M27-30,M33,M36
ITEM：MR-DS42(push-button,vertical type)
VOLTAGE：220V/50HZ
POWER：1200 W 0-90RPM
TAP RANGE：M12-M42
COLLET：M12,M14,M16,M18-20,M22,M24,M27-30,M33,M36，M40，M42
