2.Belt drive greatly reduces noise
3.Aluminum alloy hard belt disk, good balance, small shaking

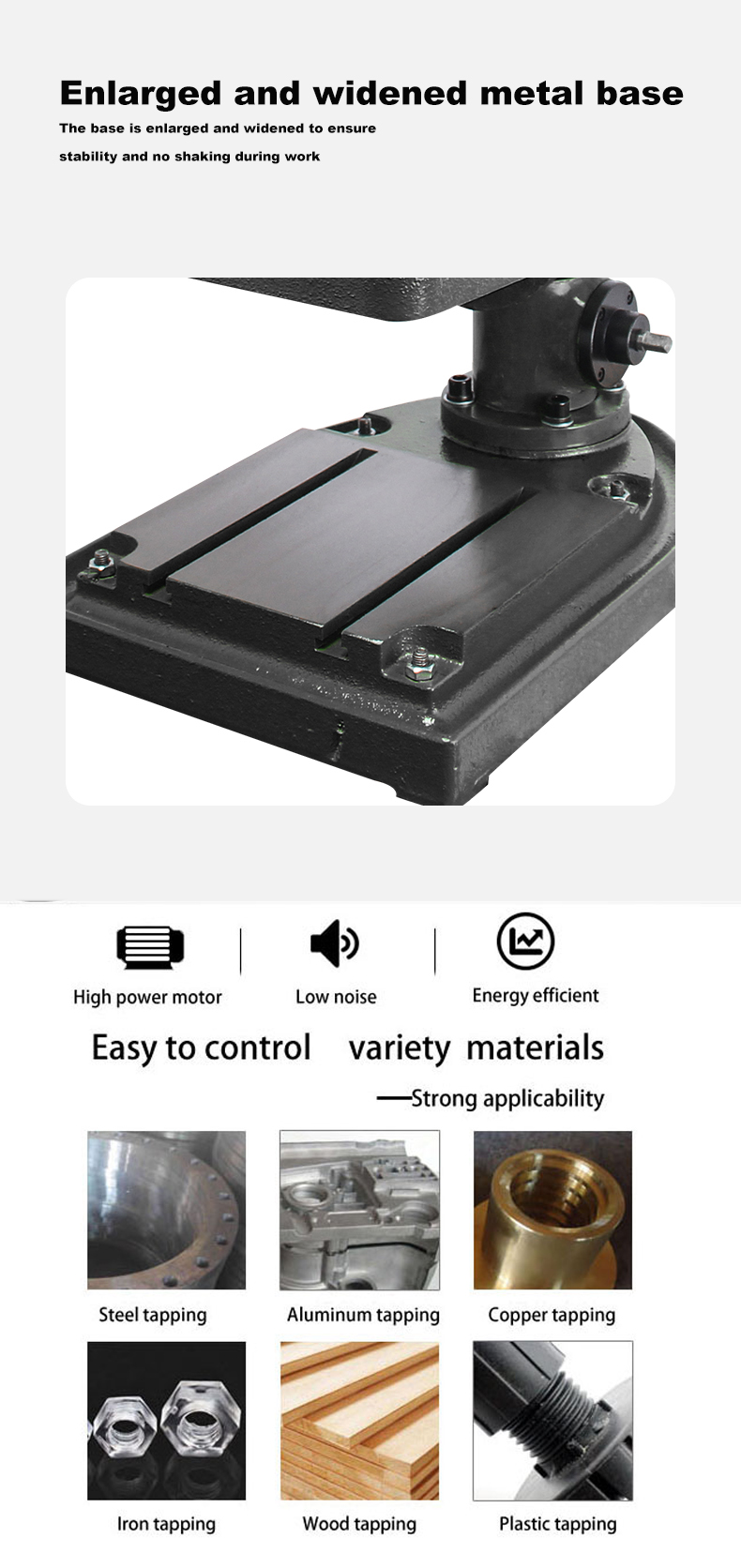

4.Fine grinding worktable, machining accuracy is higher 5.Heavy cast iron for good stability
| max drilling /tapping capacity | D:12/T:M10/M8 D:15/T:M12/M10 |
| Diameter of column | 70mm |
| Spindle travel | 100mm |
| Distance spindle axis to column generating line | 193mm |
| Distance spindle nose to table | 315mm |
| Max.Distance spindle nose to base | 556mm |
| spindle tapper | B16/MT2 |
| spindle speeds range | 480-4100rpm |
| spindle speeds series | 5 |
| Dimension of base | 528*360mm |
| overall height | 1037mm |

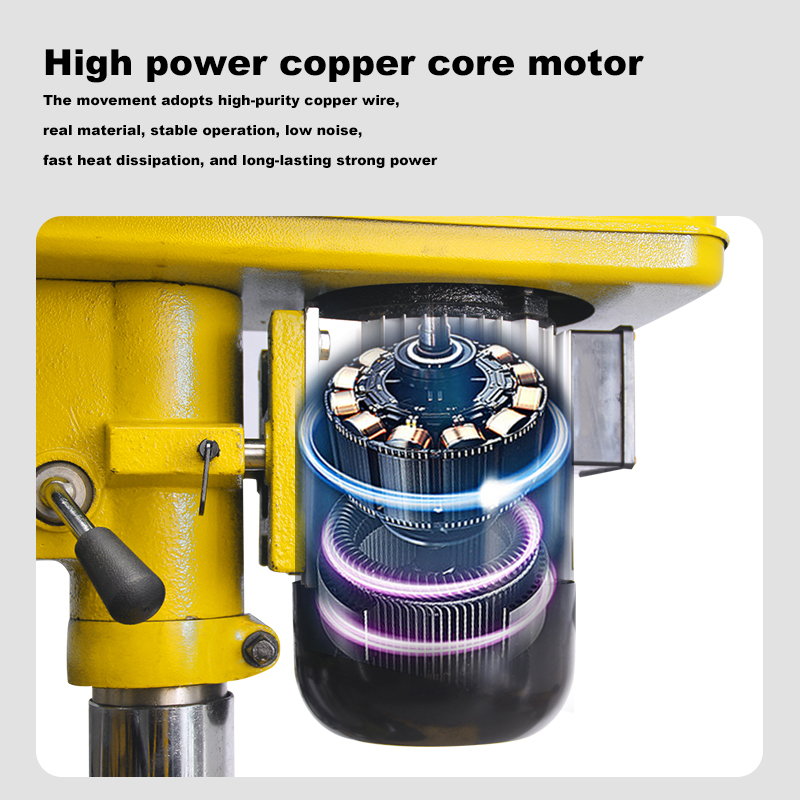

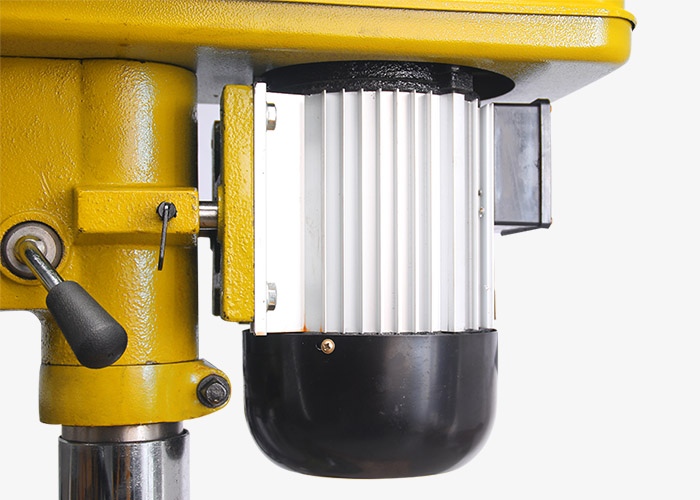

| power of motor | 750w |
| g.w./n.w. | 108/90kg |
| packing dimension | 77*42*95mm |
