VIDEO
It is the special grinder for ball end mill .

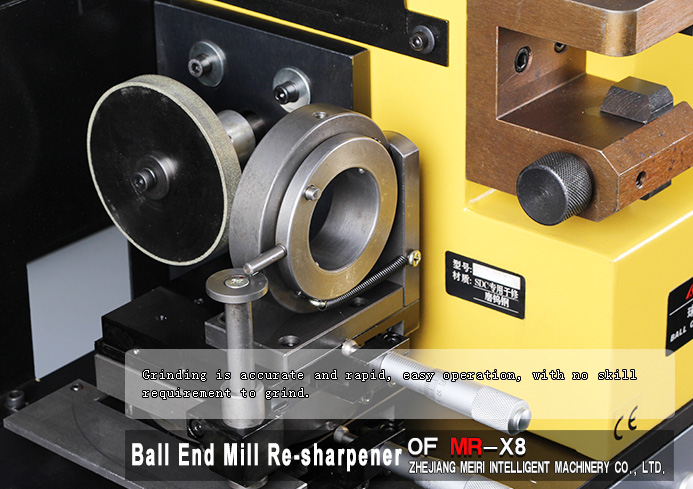

Grinding is accurate and rapid.
With diamond grinding wheel, two piece wheel can complete all procedure.

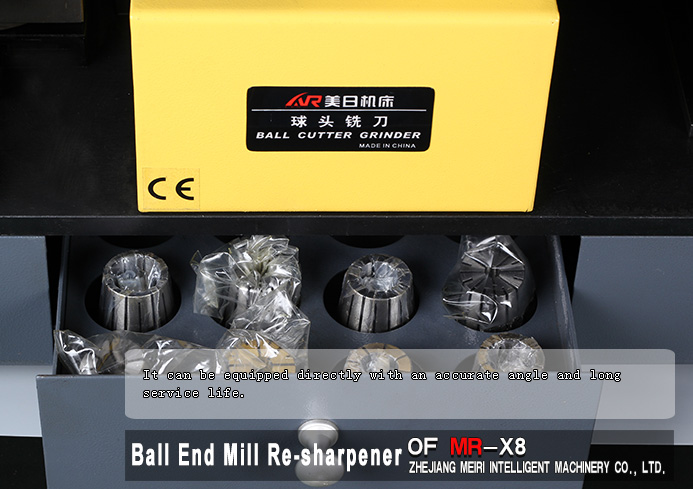

It can be equipped directly with an accurate angle and long service life.
STANDARD EQUIPMENT
SPECIFICATION
Grinding Range:ф6.0-ф20mm
Point Angle：0°~3°
Power：220V/250W
Speed：4400RPM
Two piece grinding Wheel：CBN(for HSS)
Grinding the "R" angle x 1 piece
Grinding th lip relief angle x 1 piece
Standard 8 collets：ф6, ф8, ф10, ф12, ф14, ф16, ф18, ф20
Optional two piece grinding wheel: SDC(for Carbide）
Grinding the "R" angle x 1 piece
Package：53*29*37cm
Net/Gross Weight：40kg

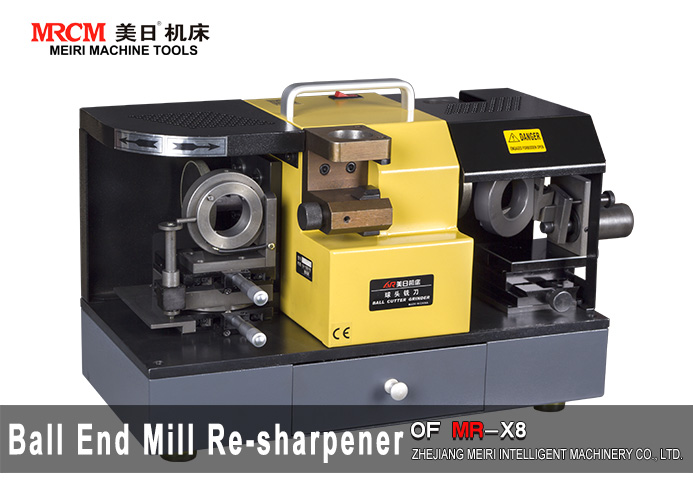

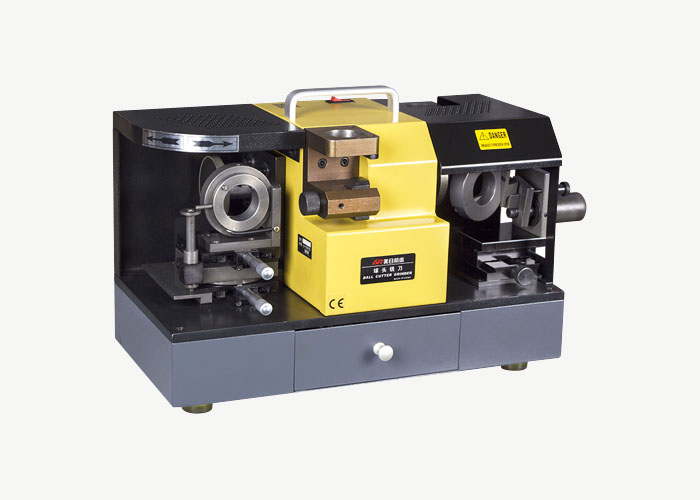

MR-X8
BALL END MILL SHARPENER
Still use a simple type of operation design, need grinding experience can also quickly work, whether you are small and medium enterprises, family workshops, personal repair, all can achieve satisfy grinding results!
MR-X8 ball milling cutter grinding machine, is a professional grinding for ball milling cutter grinding and research and development of the latest grinding equipment, grinding 6- 20
Ball head milling cutter ball face, cutting groove groove, after the escape Angle.The adjustable R Angle range is r3-r10.
Ball head milling cutter ball face, cutting groove groove, after the escape Angle.The adjustable R Angle range is r3-r10.
Accurate and fast, simple operation, no skill can be easily grinding, saving costs, improve the use of efficiency
Electronic control DC motor: stable frequency, powerful horsepower, long - term use
Electronic control DC motor: stable frequency, powerful horsepower, long - term use
