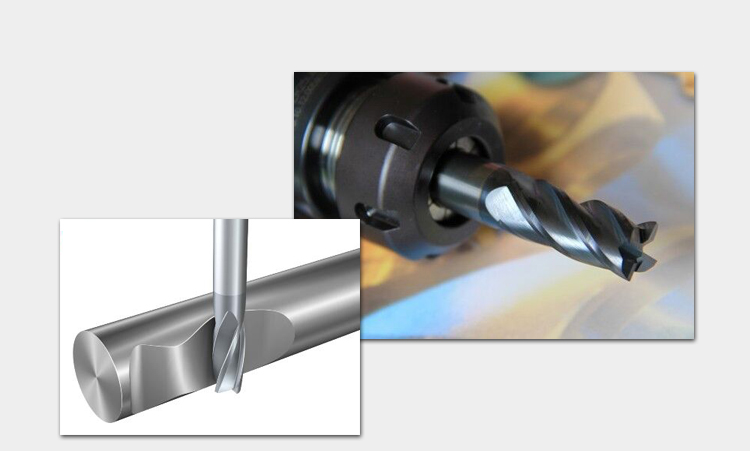

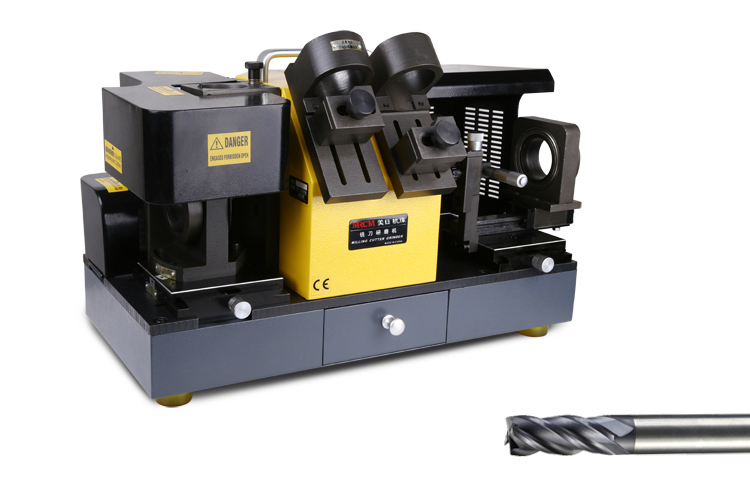

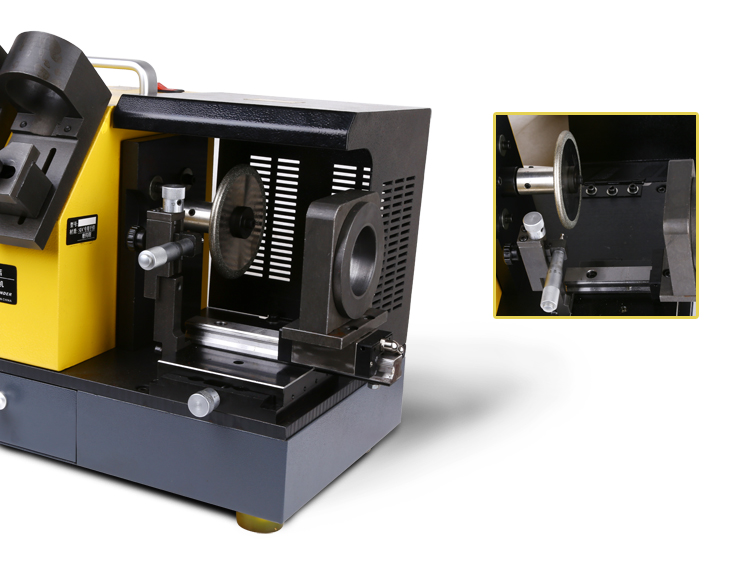

Portable end mill grinder, focus on grinding spiral end mill's side flute.
Precise and rapid grinding, easy operation without skills .

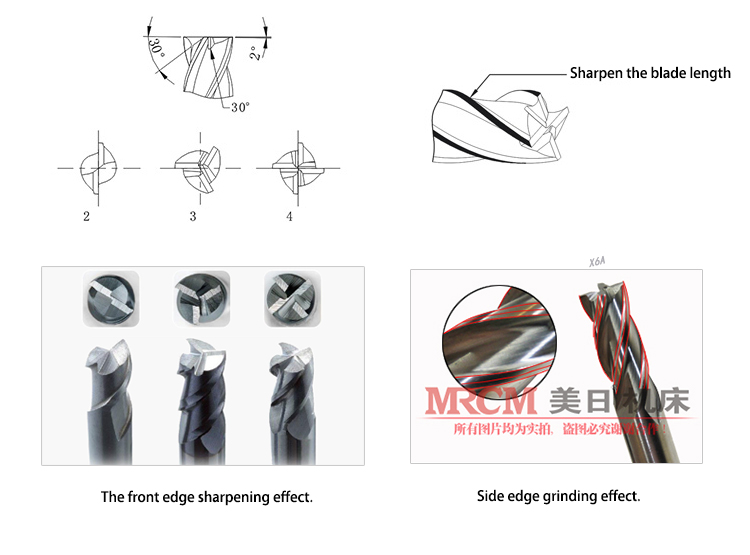

It can grind 2-flute,3-flute,4-flute end mill, and you can grind cutting edge using tungsten bar.
Equipped with diamond grinding wheel, precise angle and long service life.
Standard with SDC grinding wheel for the Carbide material, Optional CBN grinding wheel for the HSS material.

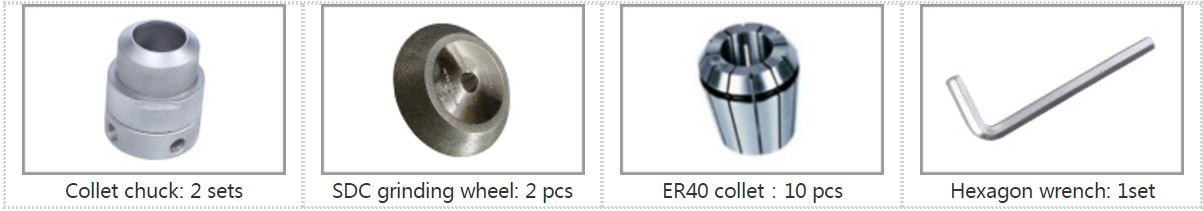

STANDARD EQUIPMENT
SPECIFICATION
Model:MR-X7
Diameter: Φ12-Φ30mm
Power:220V/250W
Speed:4400rpm
Point angle:0°-5°
Dimension:60*32*40cm
Weight:50KG
Standard Equipment:Face grinding wheel: SDC (for carbide)×1
Side grinding wheel:SDC (for carbide)×1

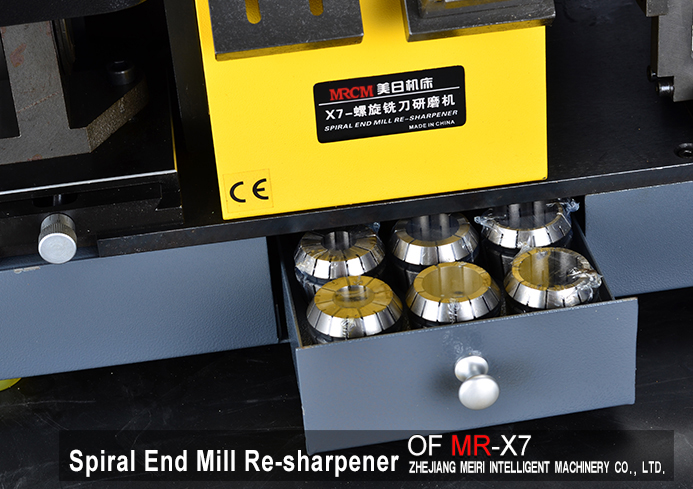

Ten collets:Φ12, Φ14,Φ16,Φ18,Φ20,Φ22,Φ24,Φ26,Φ28,Φ30

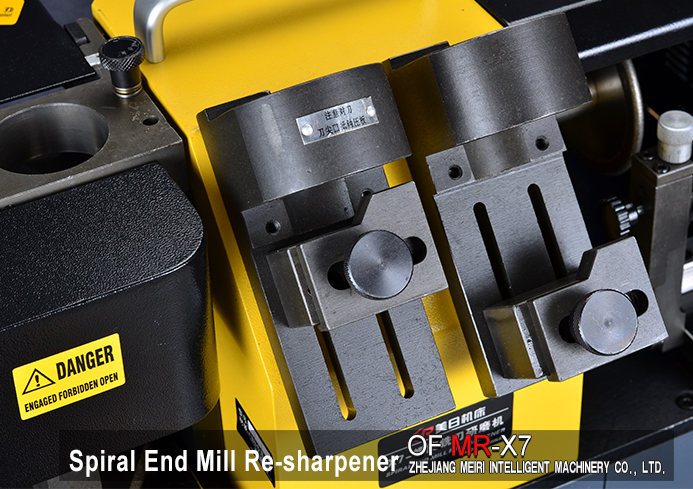

Two collet chucks:2,4 flutes ×1 piece;3,6 flutes×1 piece
Optional Equipment:Face grinding wheel: CBN (for HSS)
Side grinding wheel:CBN (for HSS)×1
Still use a simple type of operation design, without any grinding experience can also quickly work, whether you are small or medium enterprises, family workshops, personal repair, all can achieve satisfying grinding results。
INSISTING ON ORIGINAL DESIGN FROM CHINA
The electrically controlled and powerful DC motor, stable frequency, strong horsepower and long service life.
Precise, rapid and easy operation without skills, easy grinding, save cost and enhance the using benefit.
