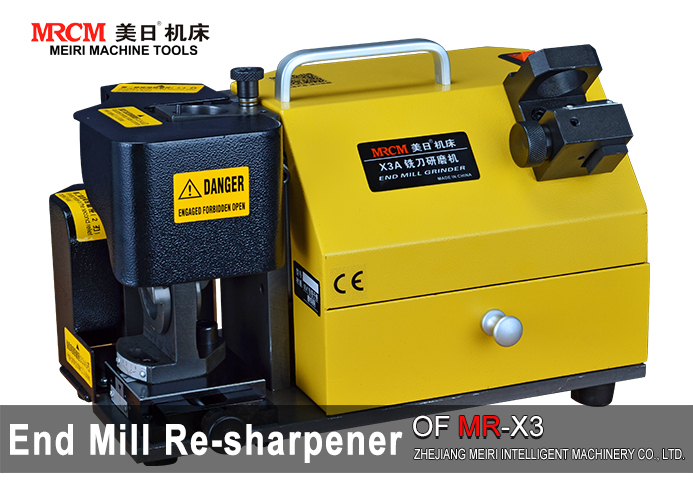

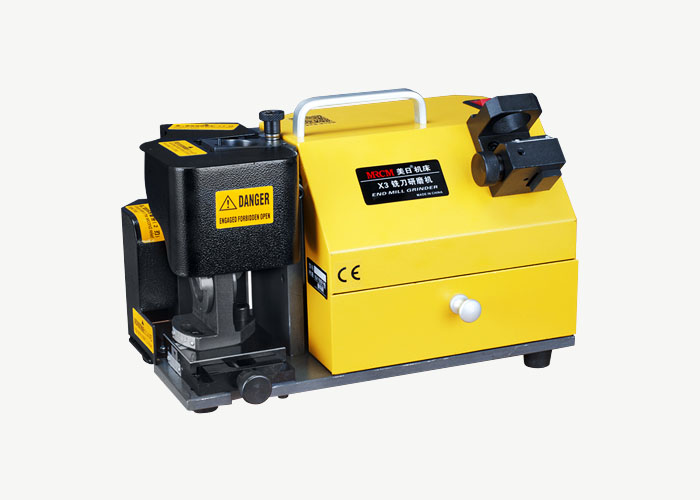

MR-X3 End Mill Re-sharpener

Description:

1. Portable idiot end mill sharpener, can grind 2-flute, 3-flute, 4-flute end mill.
2. Grinding is accurate and rapid, easy operation with no skill to grind.
3. With diamond grinding wheel, only one piece can complete all procedures.
4. It can be equipped directly with an accurate angle and long service life.
Standard with SDC grinding wheel for the Carbide material, Optional CBN grinding wheel for the HSS material.

STANDARD EQUIPMENT

end mill sharpener with taiwan grinding wheel

SPECIFICATION
Model：MR-X3
Diameter：Φ4-Φ14mm
Power：220V/160W
Speed：4400rpm
Point angle： 0°-5°
Dimension：35*25*25cm
Weight：14KG
Standard Equipment：Grinding wheel :SDC (for carbide)×1
Six collets：Φ4,Φ6,Φ8,Φ10,Φ12,Φ14
Two collet chucks：2,4 flutes ×1 piece; 3,6 flutes×1 piece
Optional Equipment：Grinding wheel :CBN (for HSS)

MR-X3

END MILL SHARPENER
Still use a simple type of operation design, without any grinding experience can also quickly work, whether you are small and medium enterprises, family workshops, personal repair, all can achieve satisfy grinding results!

INSISTING ON ORIGINAL DESIGN FROM CHINA

Two -flute, three-flute,four-flute grinding sample

good quality end mill sharpening machine

SMALL SIZE, SUITABLE FOR ANY PLACE TO DO END MILL GRINDING.

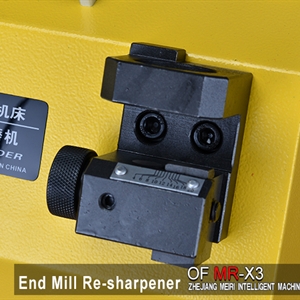

EASY TO DO THE MILL SETTING
According the diameter of the mill to adjust the scale, the operation steps are clear.
High precision and high efficiency.

Change the front location to the side location, it can observe the location easier, improve the accuracy of tool setting, and make tool setting more stable and fast, which is essential for accurate grinding.

high quality end mill sharpening machine

The electrically controlled and powerful DC motor, stable frequency, strong horsepower and long service life.
