1. Portable end mill sharpener, can grind 2-flute, 3-flute, 4-flute end mill.
2. Grinding is accurate and rapid, easy operation with no skill to grind.
3. With diamond grinding wheel, only one piece can complete all procedures.
4. It can be equipped directly with an accurate angle and long service life.
Standard with SDC grinding wheel for the Carbide material, Optional CBN grinding wheel for the HSS material.
PRODUCT EQUIPMENT
SPECIFICATION
Model：MR-X1
Diameter：Φ4-Φ14mm
Power：220V/160W
Speed：4400rpm
Point angle：3°
Dimension：35*25*25cm
Weight：14KG
Standard Equipmen： Grinding wheel :SDC (for carbide)×1
Six collets：Φ4,Φ6,Φ8,Φ10,Φ12,Φ14
Two collet chucks：2,4 flutes ×1 piece; 3,6 flutes×1 piece
Optional Equipment：Grinding wheel :CBN (for HSS)

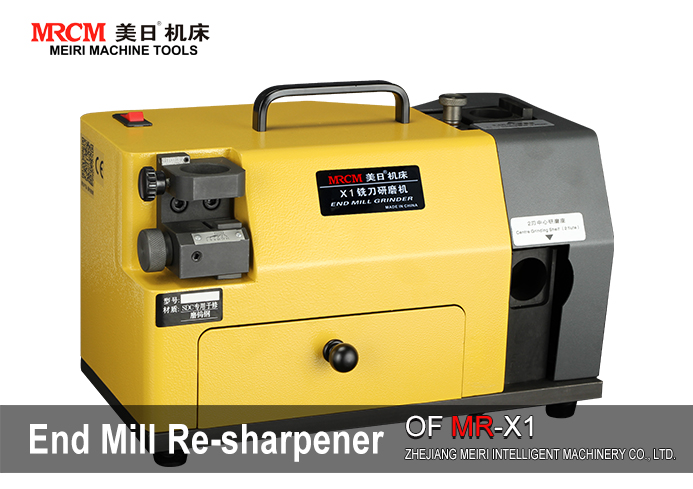

MR-X1
END MILL SHARPENER
Still use a simple type of operation design, without any grinding experience can also quickly work,
whether you are small and medium enterprises, family workshops, personal repair, all can achieve satisfy grinding results!
INSISTING ON ORIGINAL DESIGN FROM CHINA
Two -flute, three-flute, four-flute grinding sample
SMALL SIZE, SUITABLE FOR ANY PLACE TO DO END MILL GRINDING.

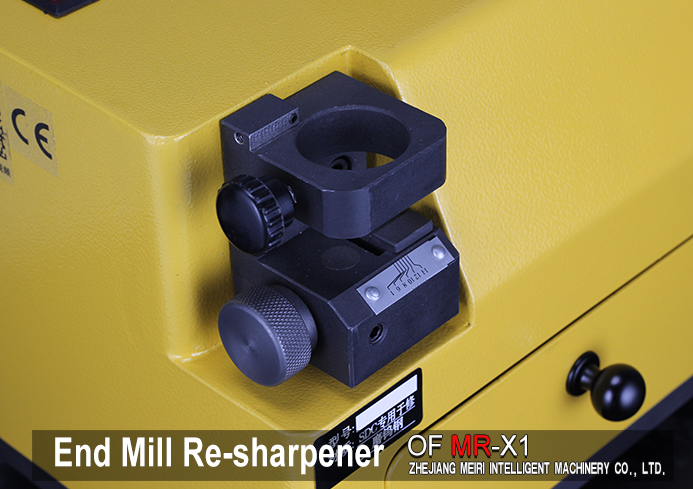

EASY TO DO THE MILL SETTING
According the diameter of the mill to adjust the scale, the operation steps are clear.
EASY TO DO THE MILL SETTING
According the diameter of the mill to adjust the scale, the operation steps are clear.
High precision and high efficiency.
High precision and high efficiency.
