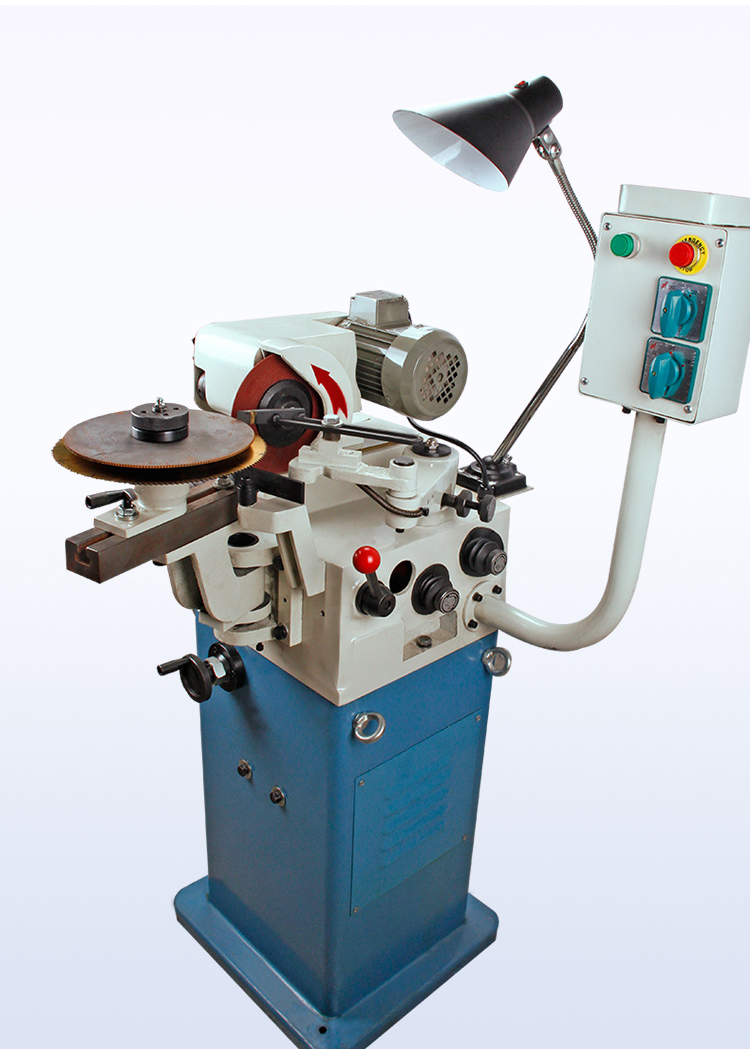

PRODUCT INTRODUCTION

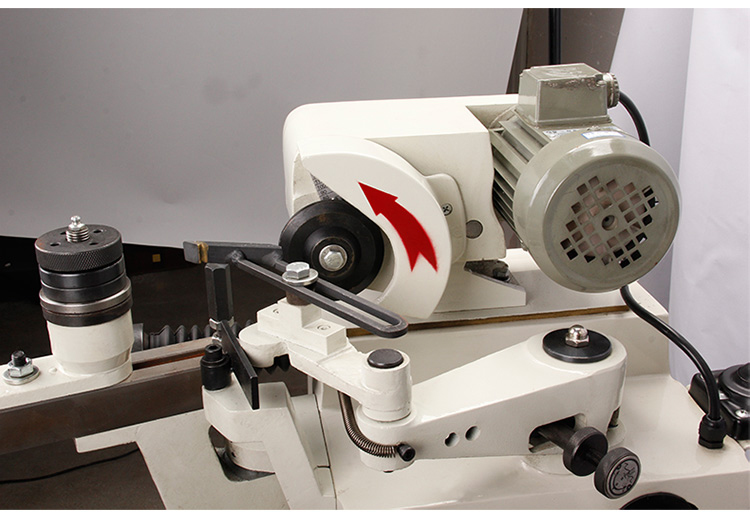

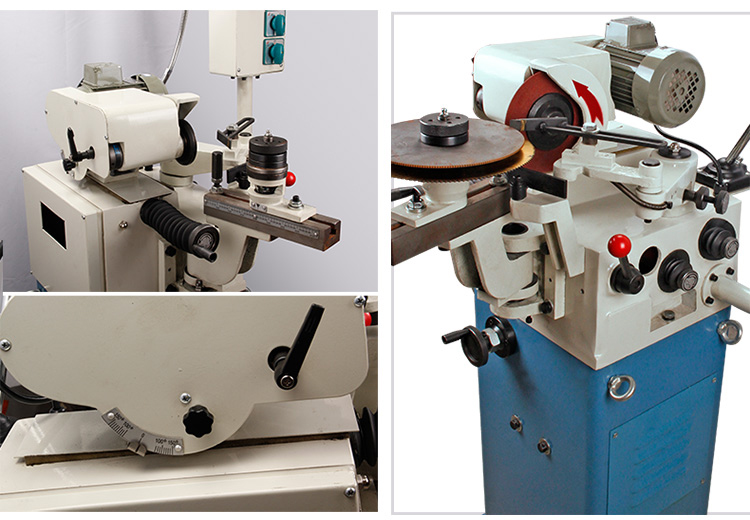

All the adjustable is arranged elaboratly ,the cutting angle ,the relief angle ,the depth and distance of gear can be adjusted easily,so we can finally get the sharp and precise saw blade.The speed can be adjusted according the gear distance by various speed belt wheel.The grinding wheel can move up and down,so it's no need to change the grinding wheel,and it's easy to grind the chamfer angle.The thickness of the saw blade can be measured by a measuring watch and the relat adjustment is easy.we can also grind gear with altitude parallax controled by relat control knob.The transmission dept is controled by grinding wheel motor and its construction to reliaze safe and accurate transmission.

---

SPECIFICATION
Circle range:ф50mm-ф450mm
max gear :25mm
gear depth:8mm
angle:0-30
feed speed 45-180teeth/min
thickness:8mm
grinding wheel external diameter:ф70~150mm
speed:4500rpm
transmission motor:1/2HP
grinding wheel motor:3/4HP
dimension:132×80×80cm
net weight:130kg

---
