1. Specialize in grinding screw tap. It't precise, easy operation and efficient, also can save large sum of expense for purchasing blade annually.

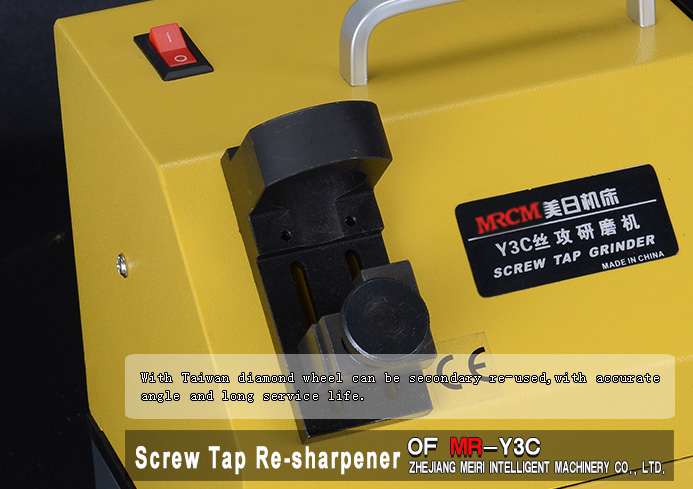

2. With diamond wheel, can be secondary re-used, with accurate angle and long service life

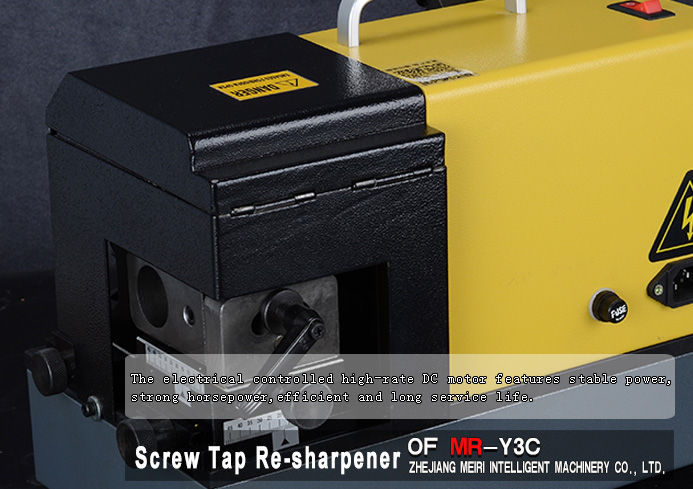

3. The electrical controlled high-rate DC motor features stable power, strong horsepower, efficient and long service life.

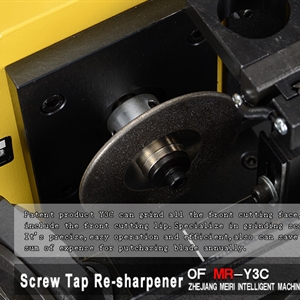

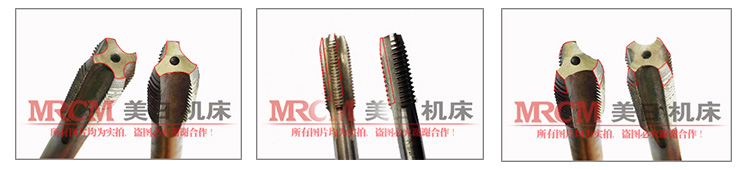

4. Patent product Y3C can grind all the front cutting face, also include the front cutting lip.
M20 tap shank is within 14 for grinding

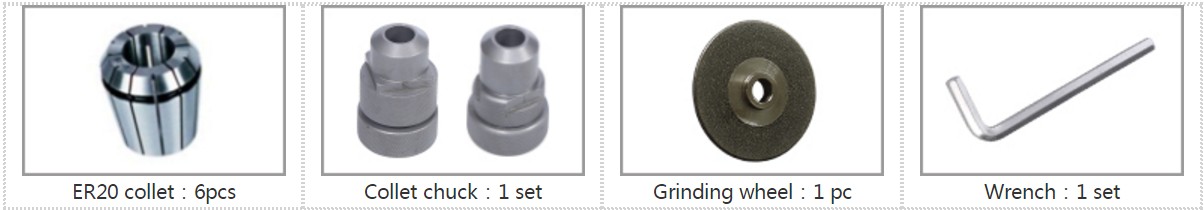

STANDARD EQUIPMENT
SPECIFICATION
Grinding range：M5-M20
Point angle：5°~30°
Speed：4400RPM
Power：220V/160W
Standard grinding wheel：CBN （for HSS）
Standard collets：ф5、ф7、ф8、ф9、ф13、ф14
Optional grinding wheel:SDC(for carbide material)
Package Dimension：36×27×31cm
Net/GrossWeight：14kg/16kg
Adopt bearing shaft and locking unit.It can be equipped directly with an accurate angle. The electrically controlled and powerful DC motor,stable frequency,strong horsepower and long service life.
Self-development Y3C can grind the all front cutting face and front cutting lip.
